Fabrication-ready mechanical piping shop drawings translate design documents and coordinated models into clear plans, sections, elevations, and installation details. Our drawings show routing, dimensions, equipment connections, and the information shop and field teams need to plan the work.

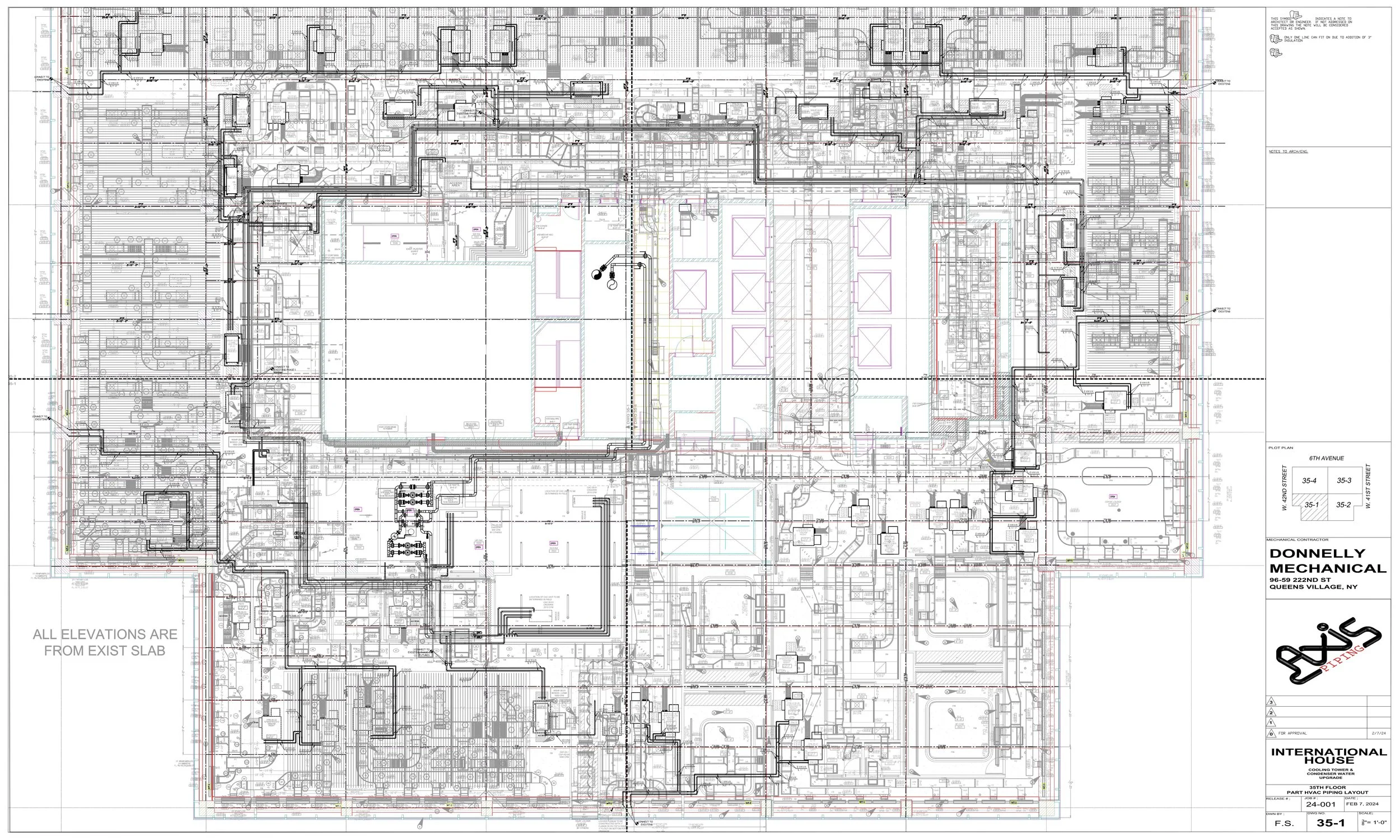

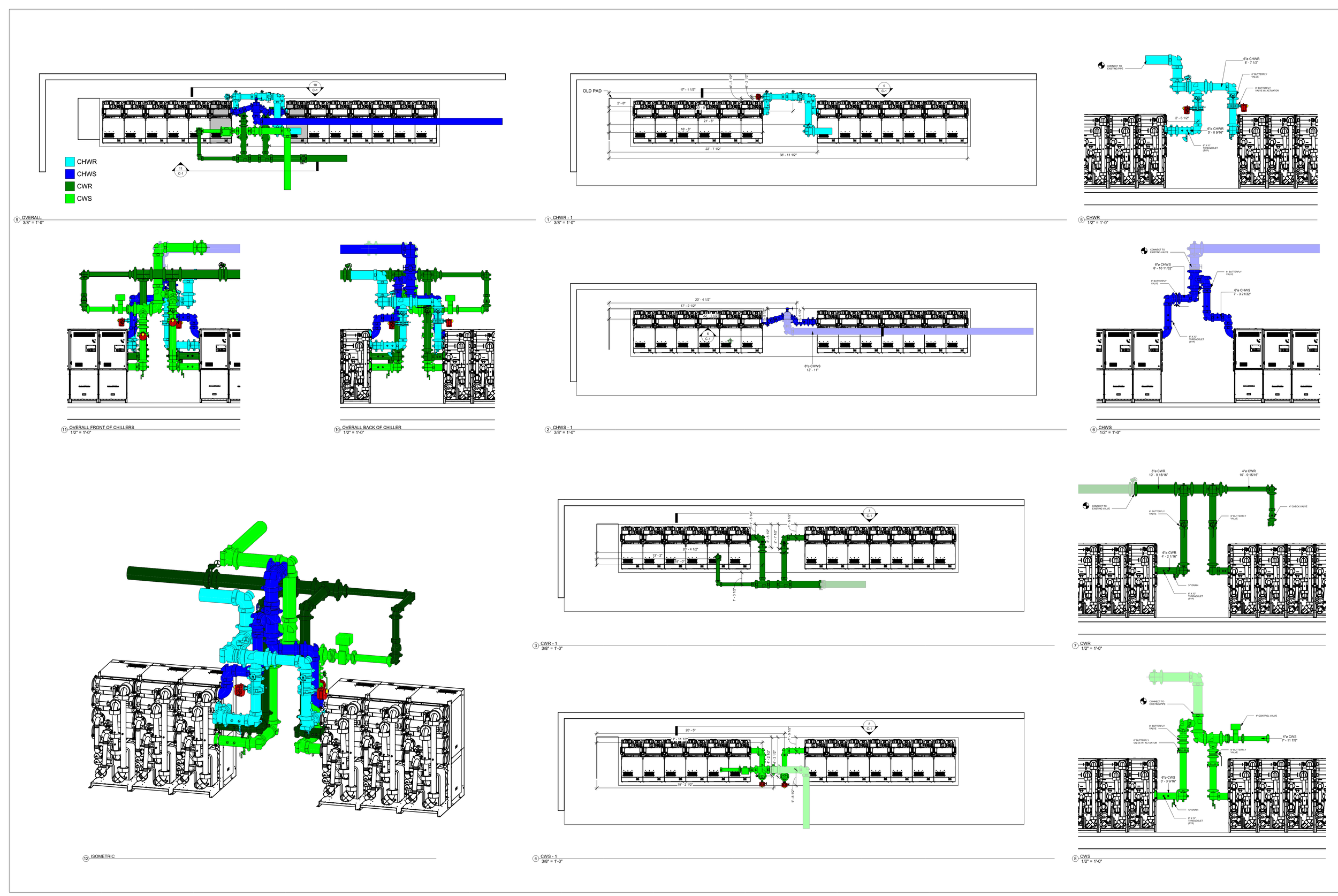

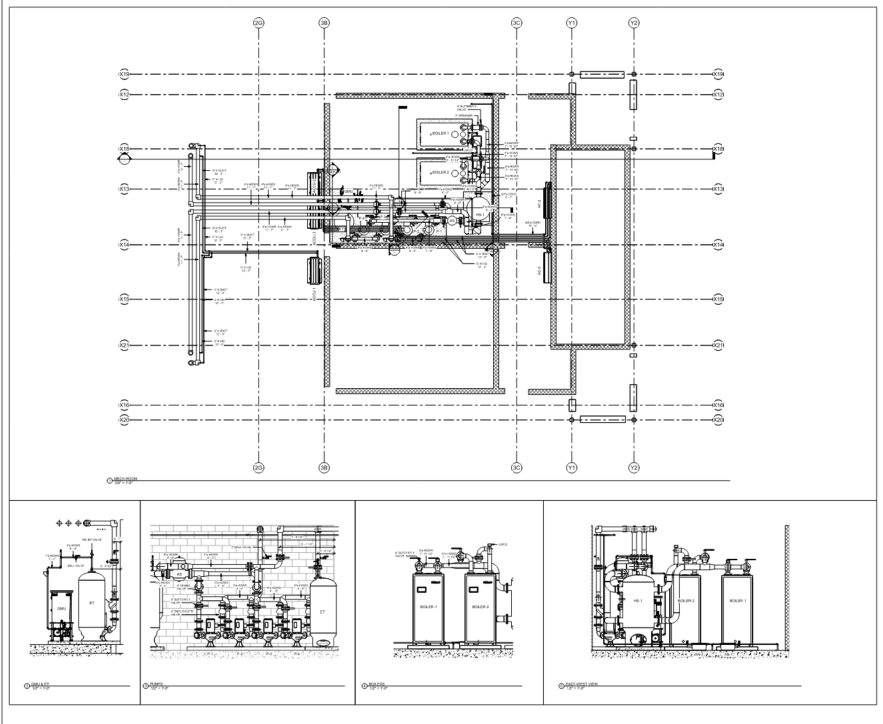

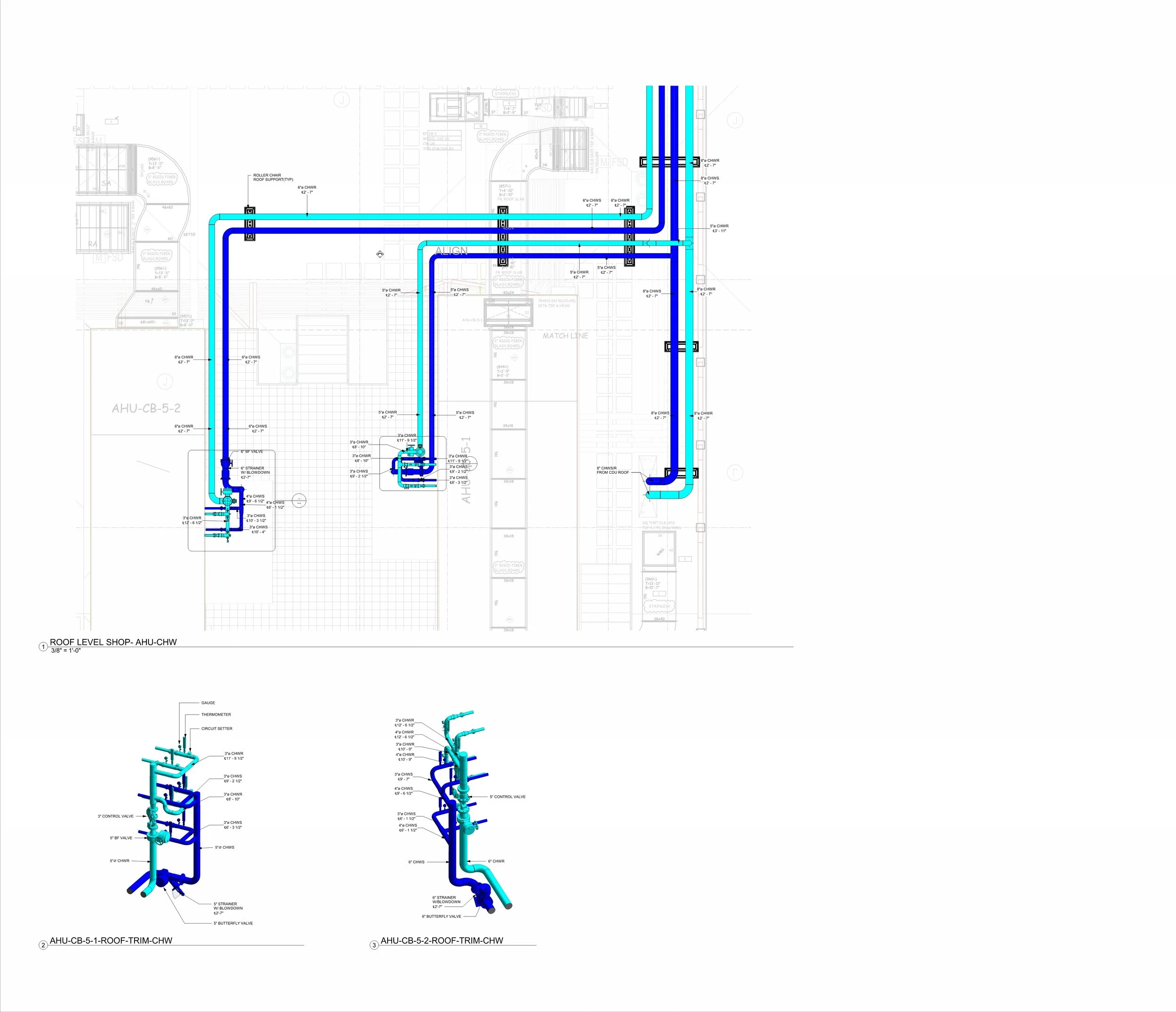

The project examples below include Ace Hotel, LIRR Babylon Station, SCB, and South Shore Hospital. Select a drawing to view it at full size.

Clear routing and installation details help teams reduce field rework, plan fabrication, and coordinate the work before installation.

For a new project, email fhernandez@steellinedesigns.com or call (347) 928-5233 with your scope and schedule.
